Power-intensive industries often require lengthy cables, with some sectors utilizing cables extending hundreds or even thousands of meters into harsh environments. Long cables introduce numerous issues for motors, amplifying voltage spikes and generating higher-order harmonics. These unstable voltages can damage both cables and motors.
Variable frequency drives cause voltage distortion, common-mode voltage, peak voltage, and higher-order harmonics, leading to cable damage and premature motor insulation failure, overheating, reduced service life, and bearing damage. This also results in decreased system energy efficiency, higher failure rates, reduced production capacity, and increased costs.
1. Effectively reduces dv/dt voltage at the inverter servo motor terminals;
2. Prevents premature aging and breakdown of transmission cables and servo motor windings;
3. Extends servo motor service life, enhances servo reliability and uptime;
4. Effectively suppresses pulse spike voltage at the servo motor terminals;
5. Reduces motor heating and bearing wear.
Characteristics: Excellent durability, maintenance-free, operating temperature customizable up to 140°F/60°C.Maximum supported cable length extended to 300 meters.
Suppress harmonics, reduce motor heating, extend motor lifespan, lower motor noise, decrease eddy current losses, and protect power switching devices inside the inverter. Supports a maximum cable length extended to 90 meters.
Excellent durability, maintenance-free operation, operating temperature can be designed as required: up to 140°F/60°C.
Unparalleled capability in cleaning PWM
Almost eliminates high-frequency harmonics and voltage spikes
Reduces motor heating and extends motor service life
Improves system performance and enhances efficiency
Supports a maximum cable length of up to 2000 meters
Excellent durability, maintenance-free, operating temperature can be designed as required: up to 140°F/60°C
Oil and gas industry, wastewater treatment industry, mining and smelting industry, papermaking and printing industry.
| Solution | Product Series | Main Parameters | Enclosure | Cooling Method | Description | Performance |
|---|---|---|---|---|---|---|

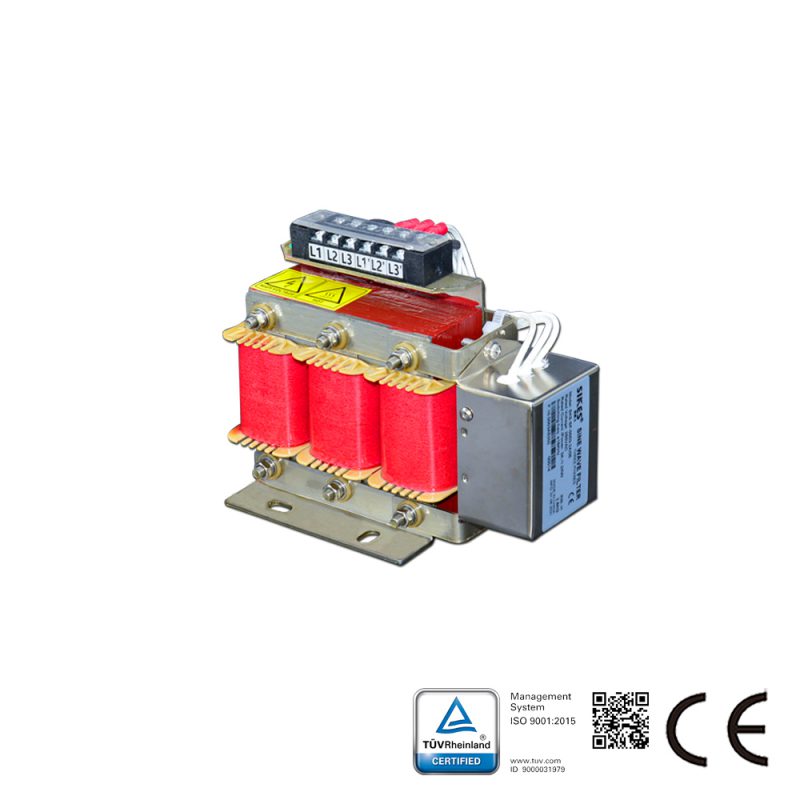

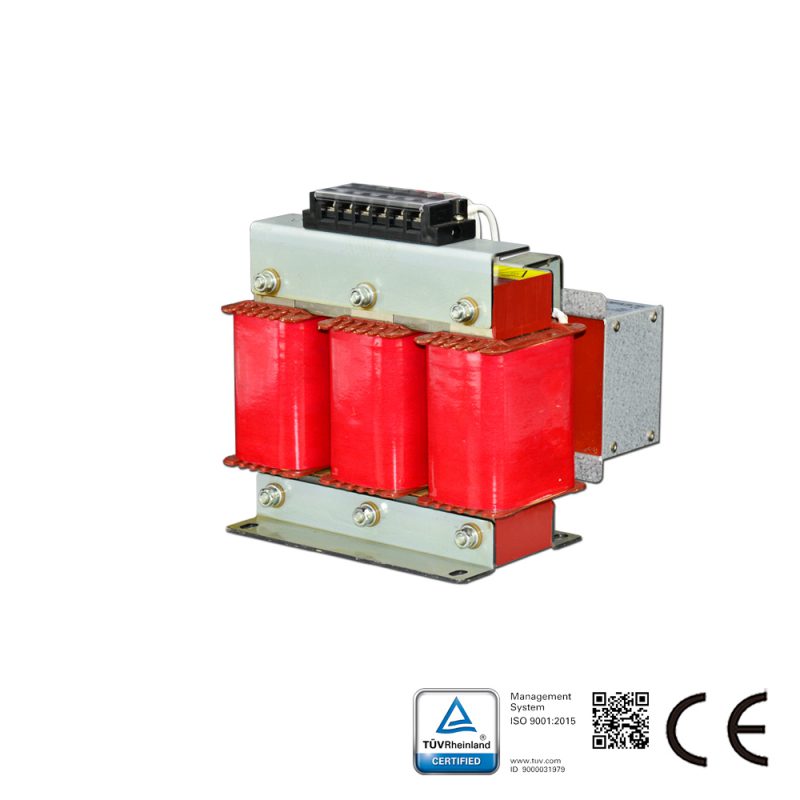

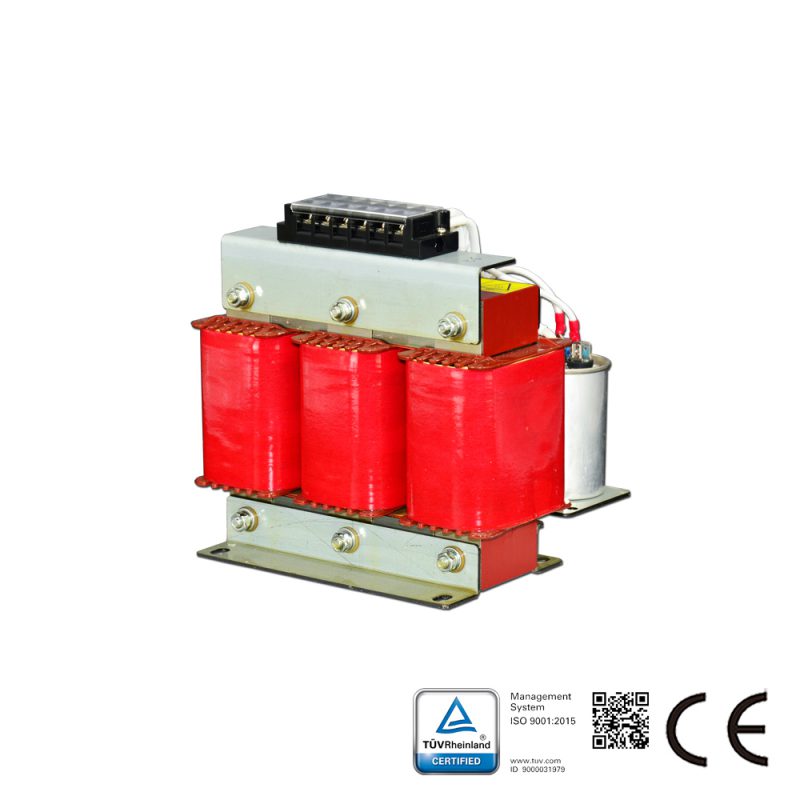

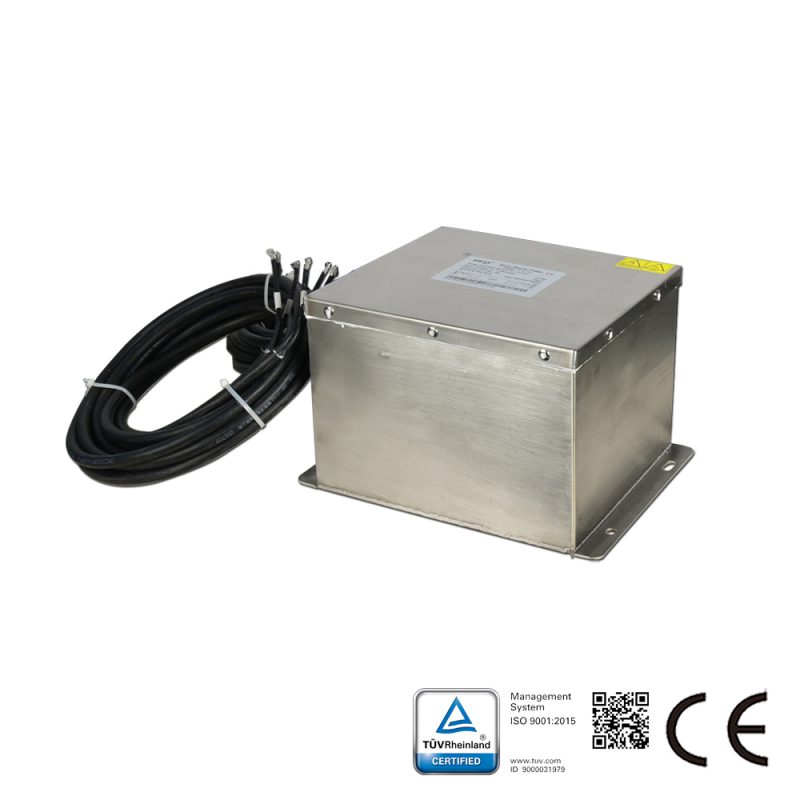

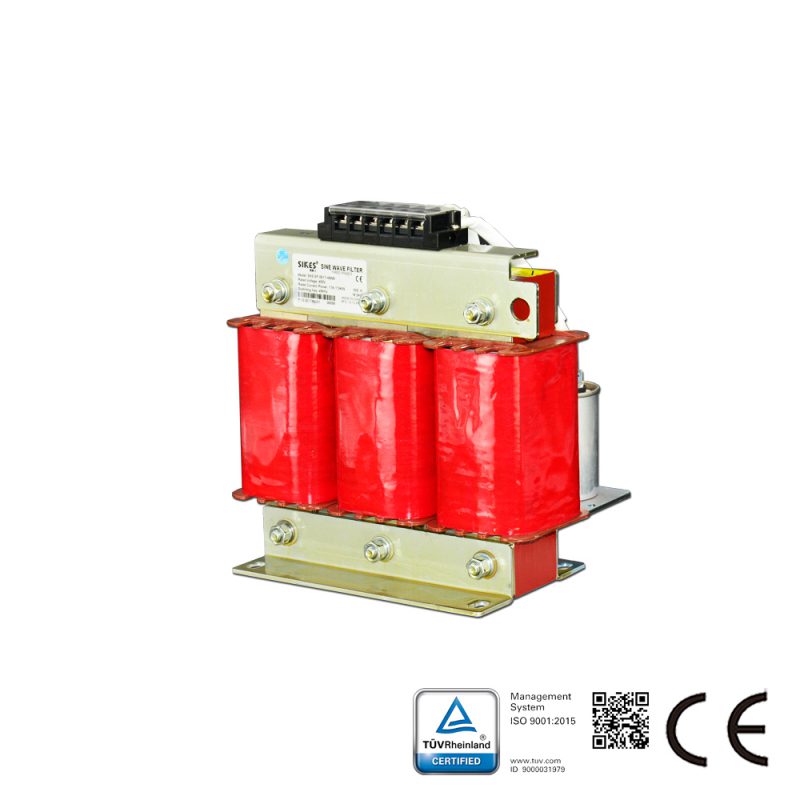

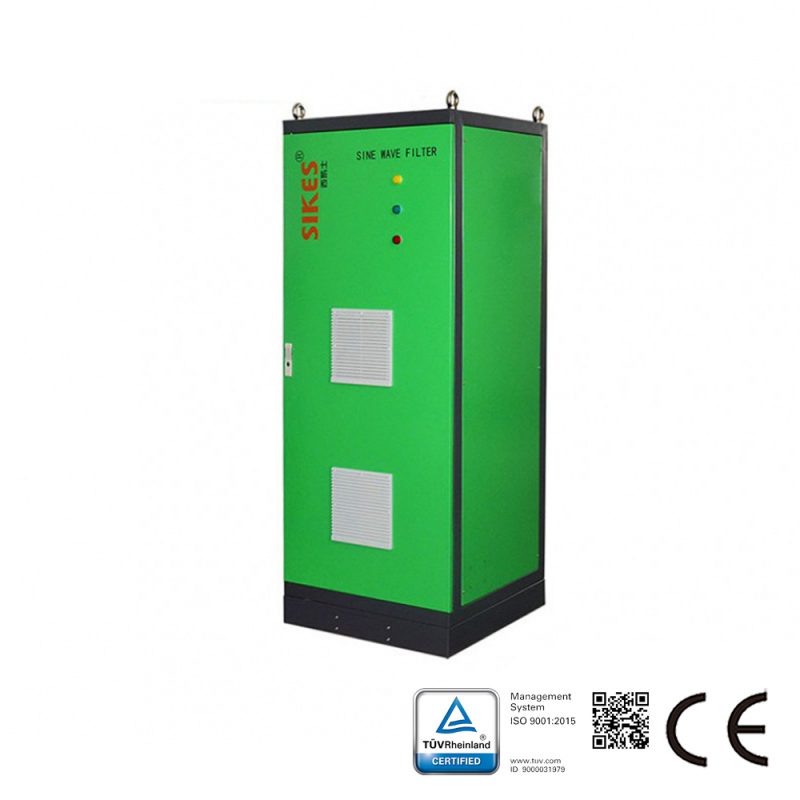

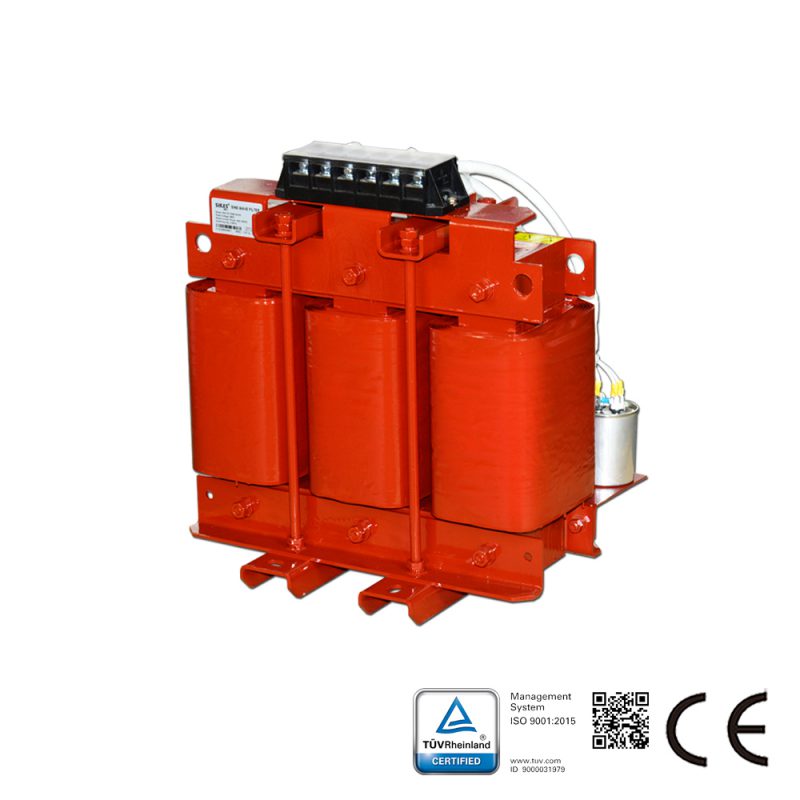

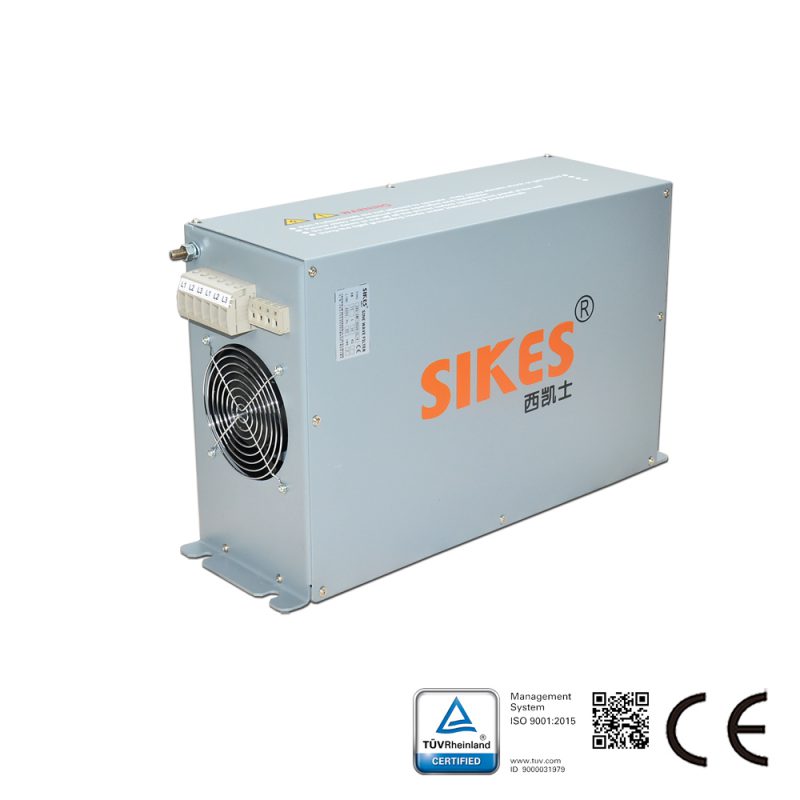

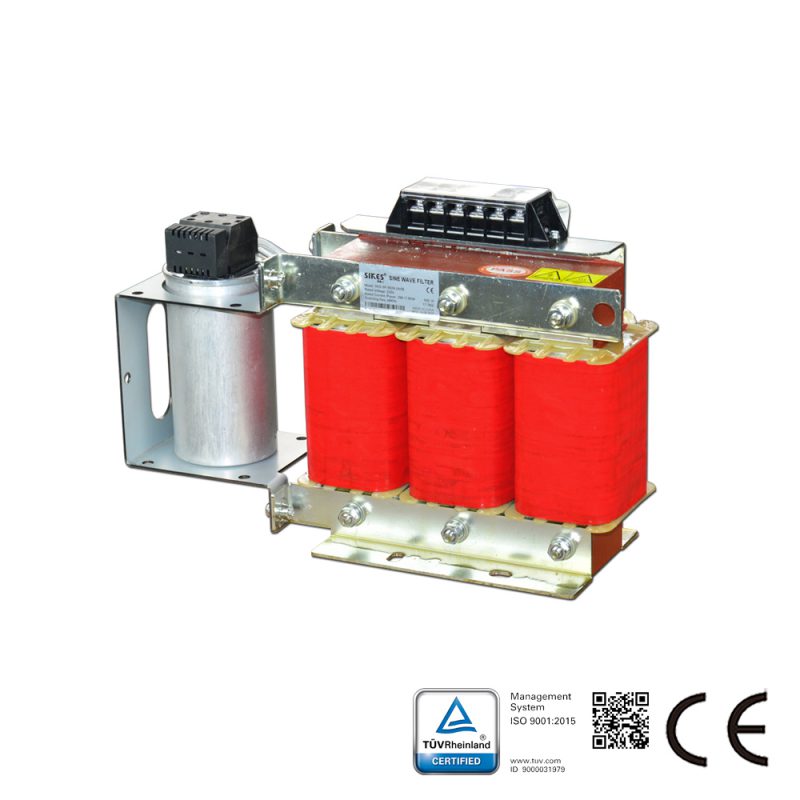

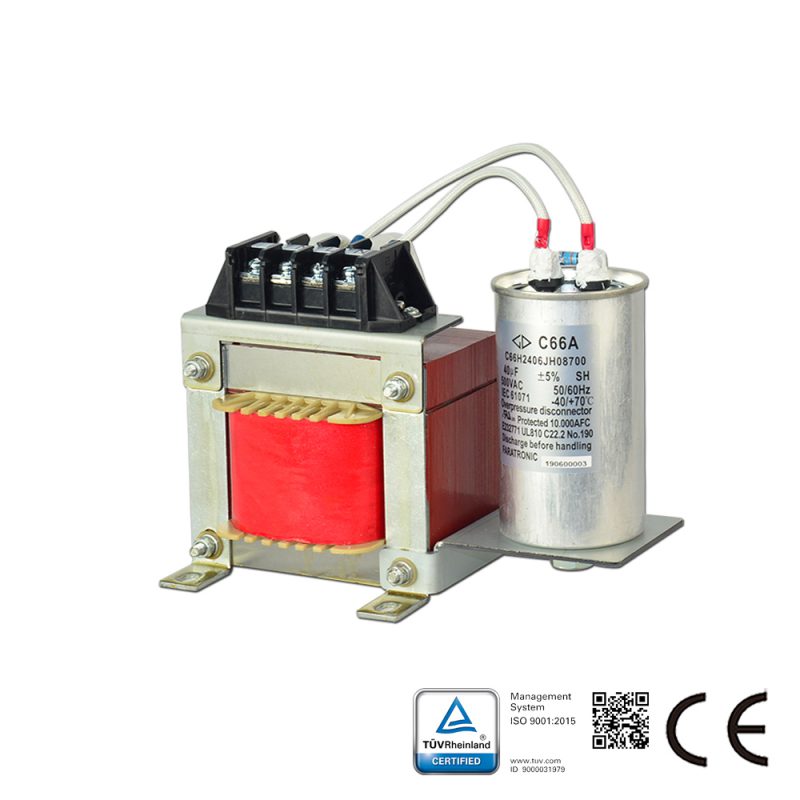

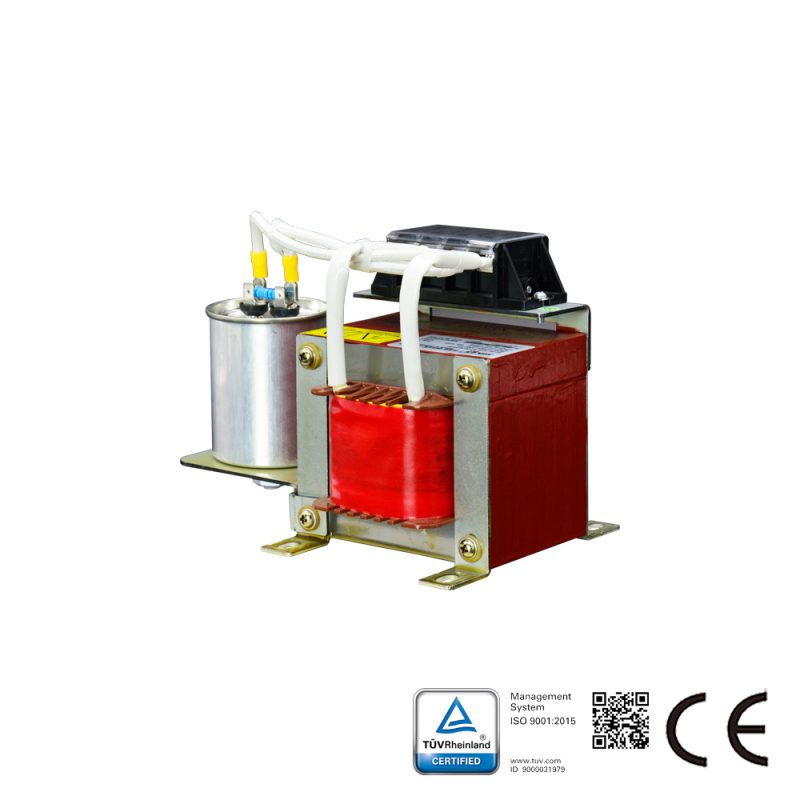

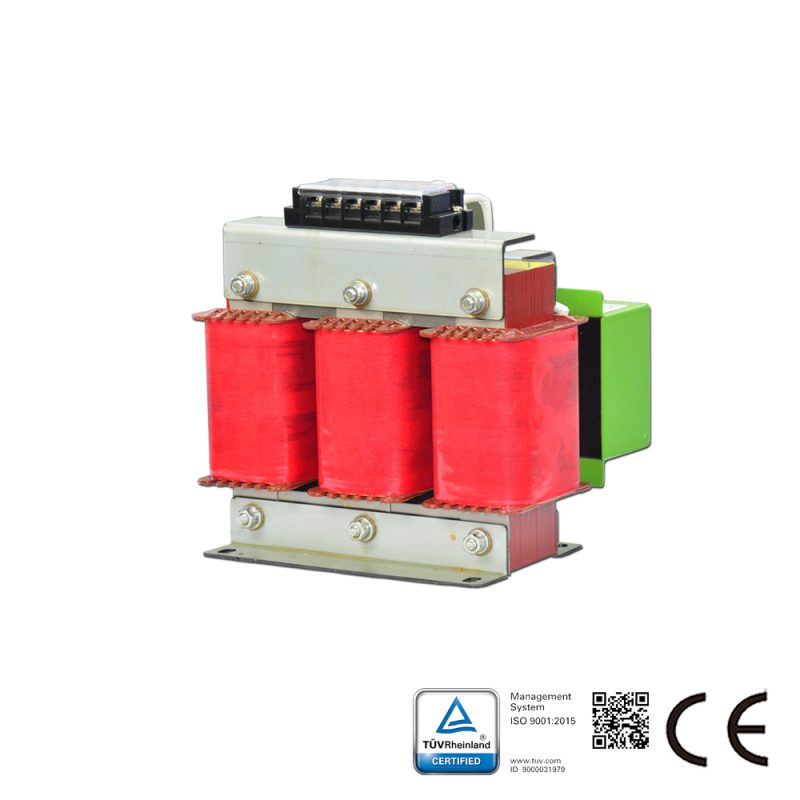

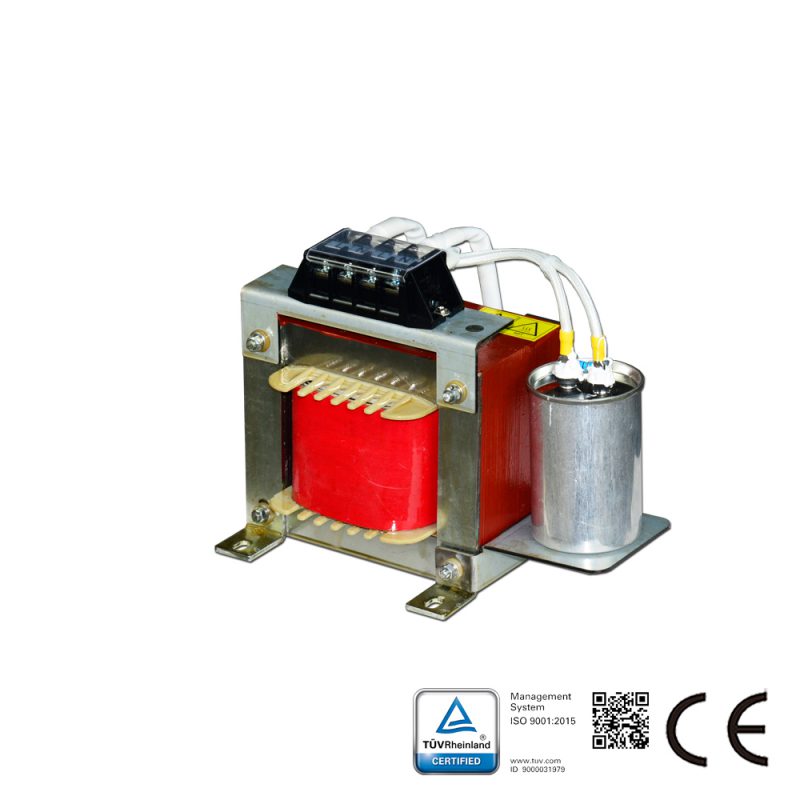

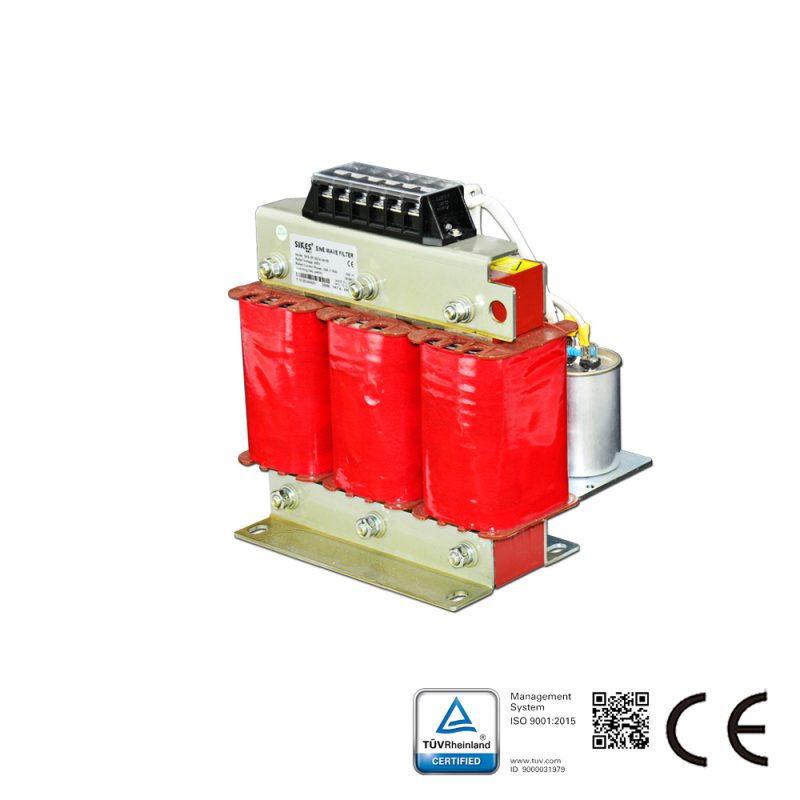

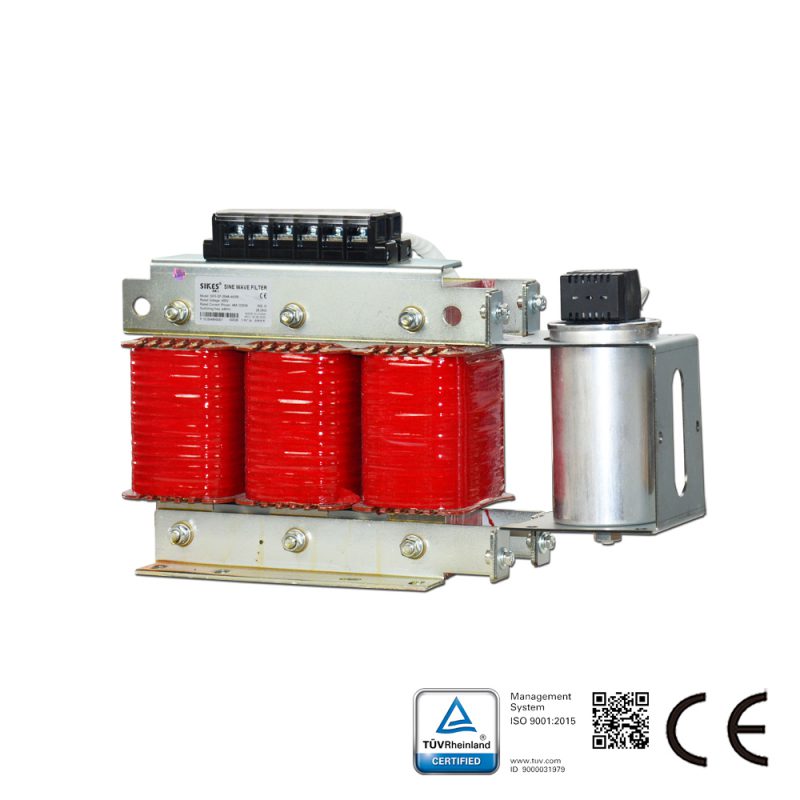

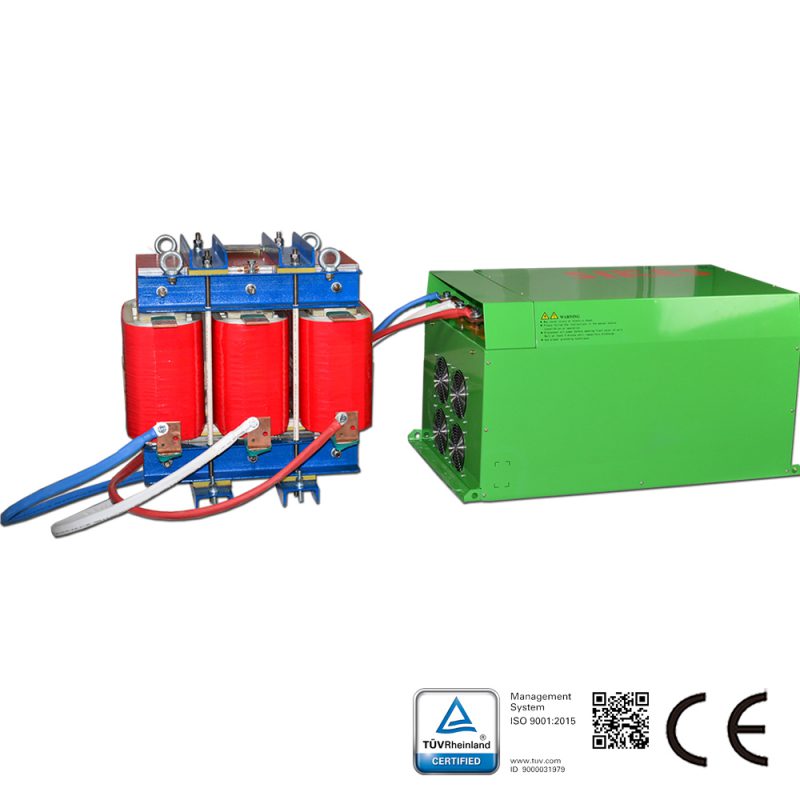

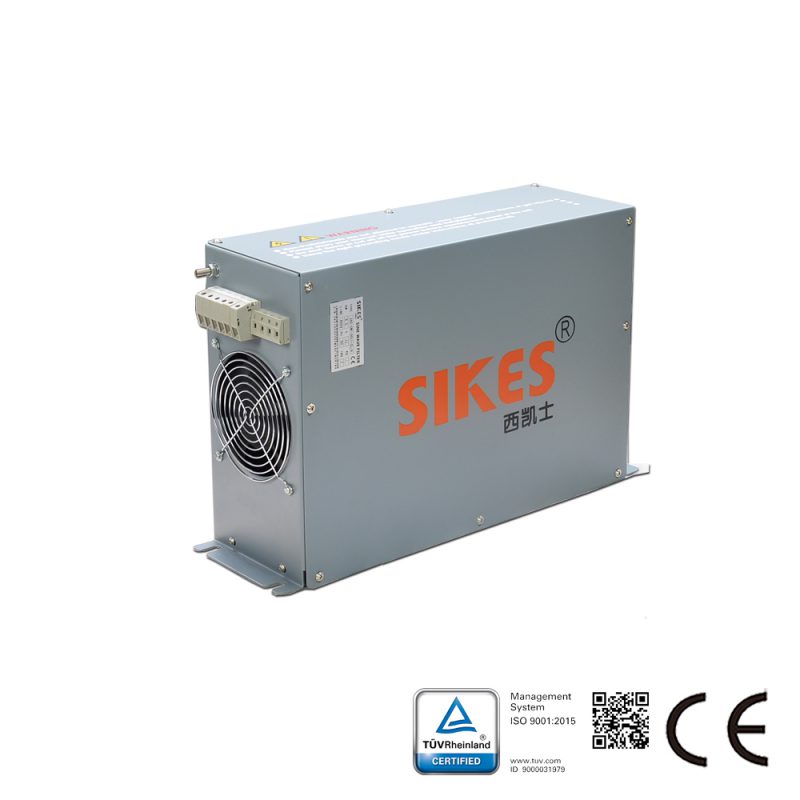

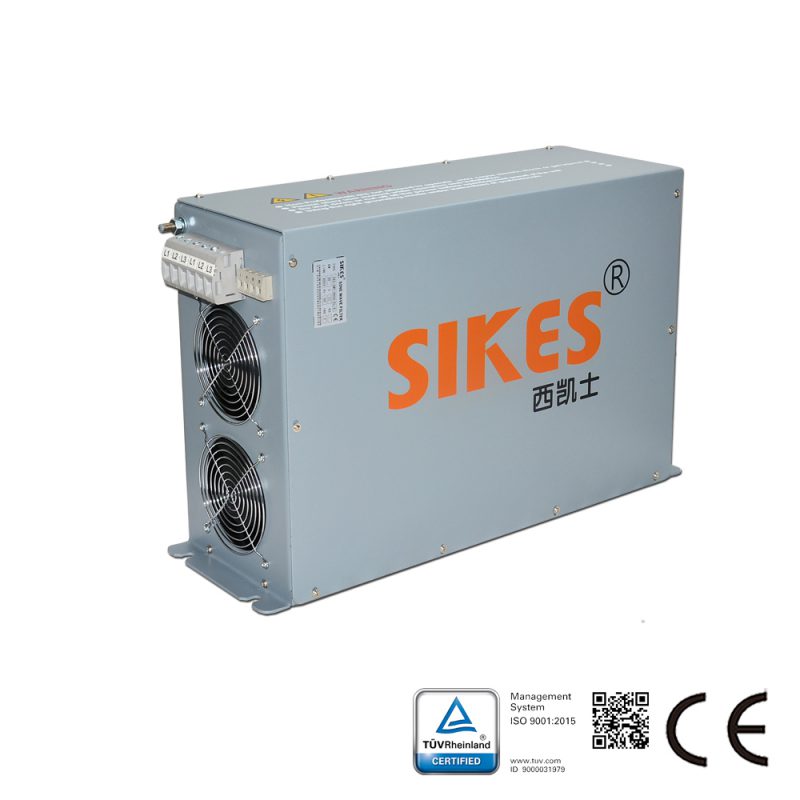

| Sine Wave Filter – With Enclosure | SWF | THDv 5% | IP20 | AF | Unmatched PWM filtering performance, virtually eliminating high-frequency harmonics and voltage spikes, reducing motor heating, extending motor lifespan, improving system performance and efficiency, and supporting maximum cable lengths up to 2000 meters. | ★★★★★ |

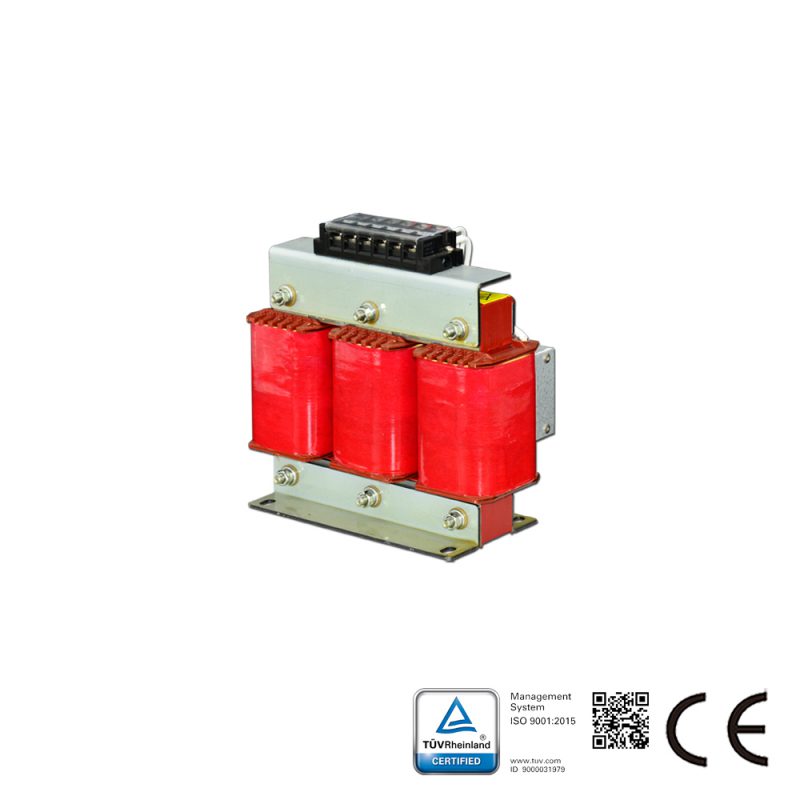

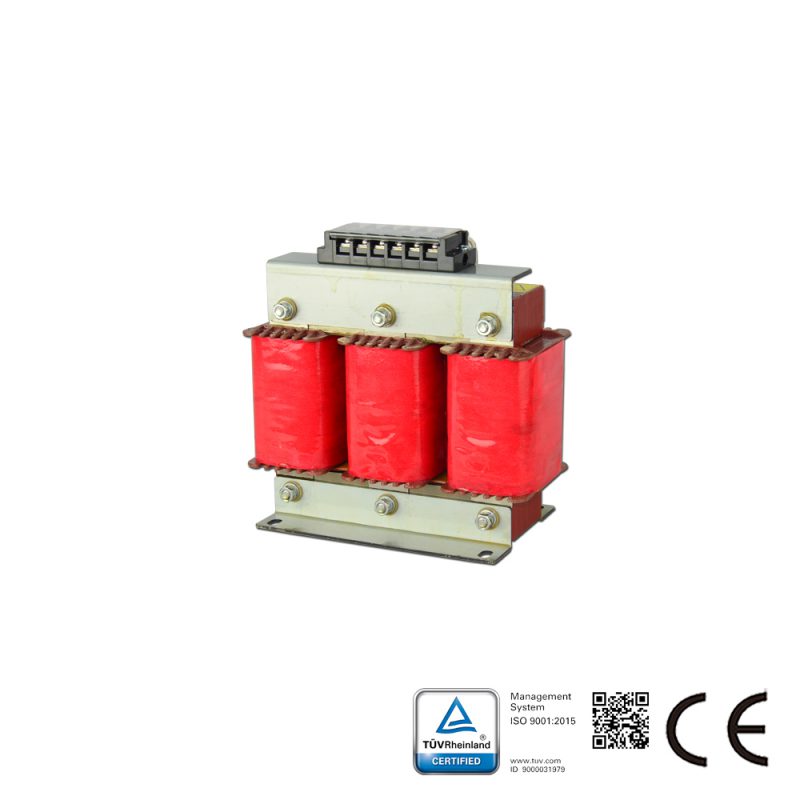

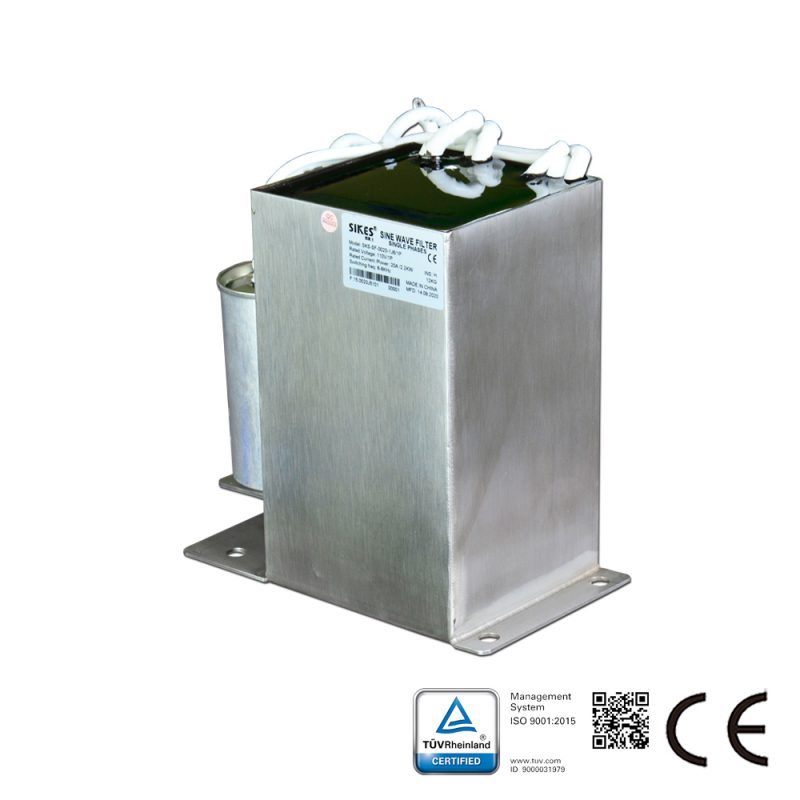

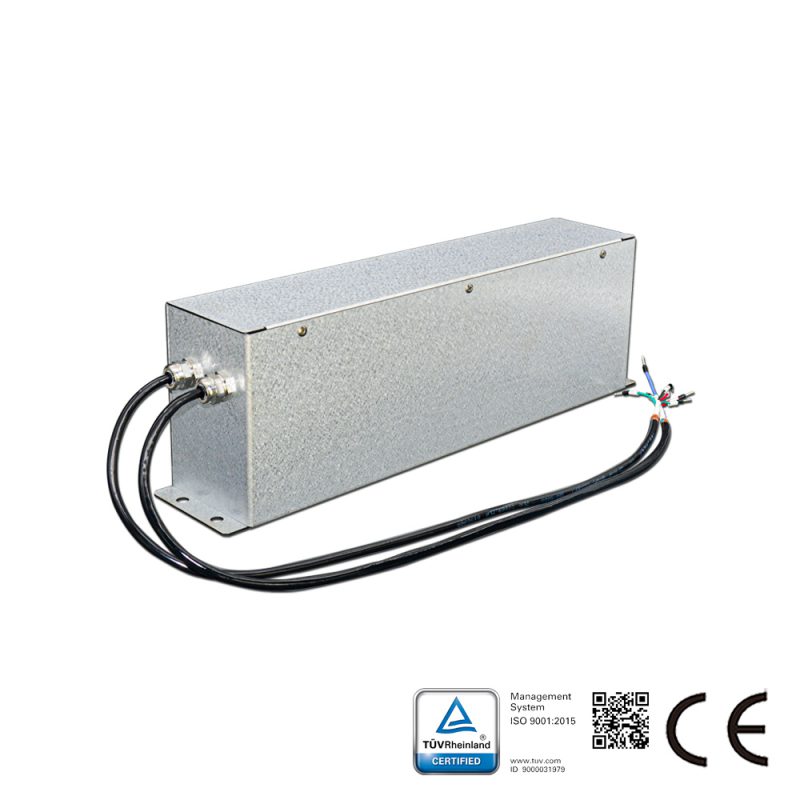

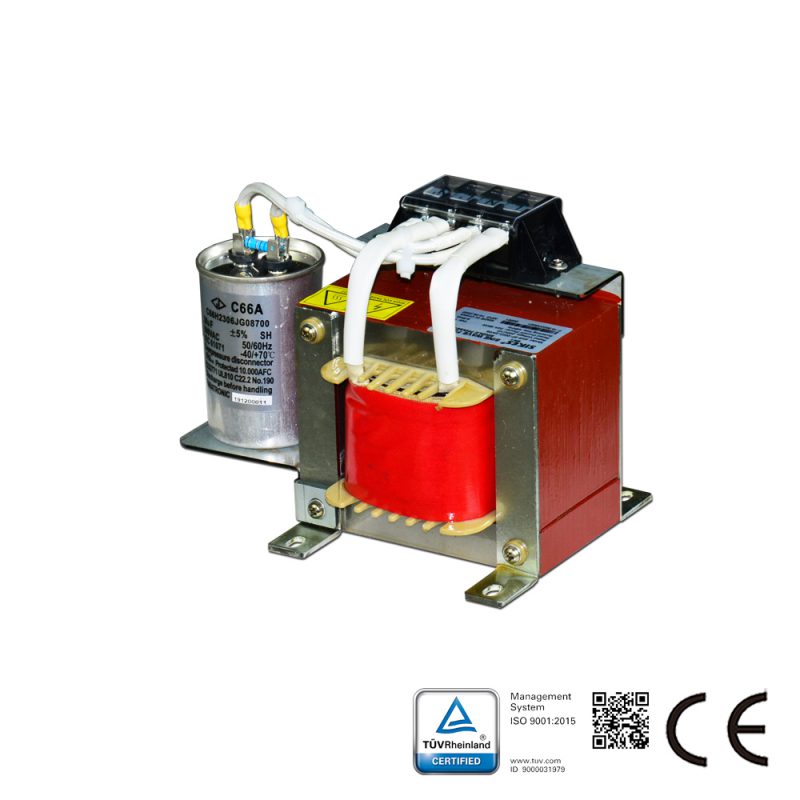

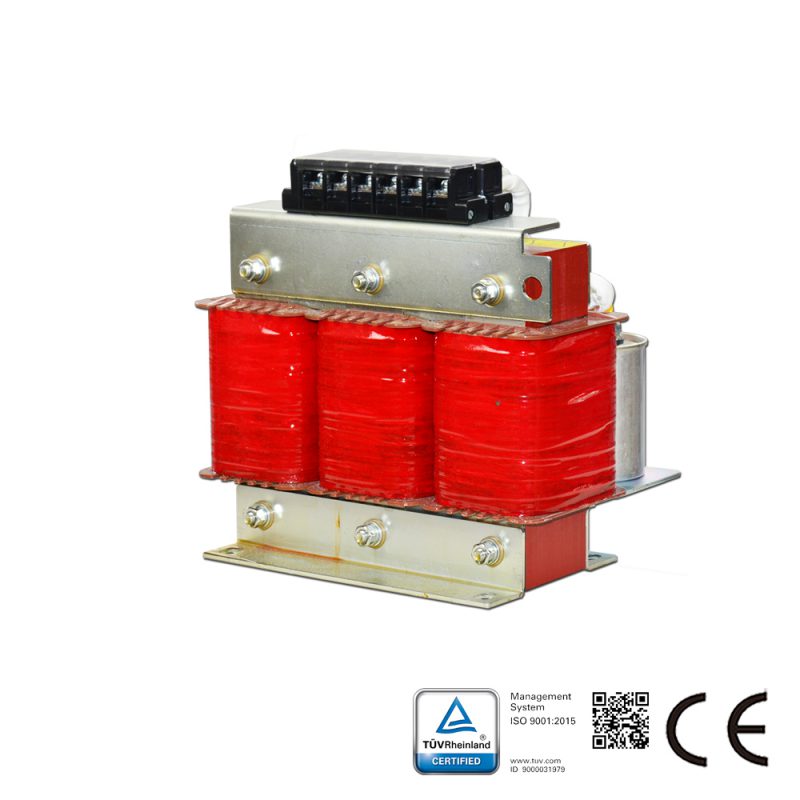

| Sine Wave Filter | SF | THDv 5% | / | AN | Unmatched PWM filtering performance, virtually eliminating high-frequency harmonics and voltage spikes, reducing motor heating, extending motor lifespan, improving system performance and efficiency, and supporting maximum cable lengths up to 2000 meters. | ★★★★★ |
| DV/DT Filter | DVT | Peak Voltage ≤ 1000V | / | AN | 1. Effectively reduces dv/dt voltage at the servo motor terminals; 2. Prevents premature aging and breakdown of transmission cables and servo motor windings; 3. Extends servo motor lifespan, improving reliability and system uptime; 4. Reduces pulse peak voltage at motor terminals; 5. Minimizes motor heating and bearing wear; supports maximum cable lengths up to 300 meters. |
★★★★ |
| Output Reactor | OCL | Reactance Rate: 1%–5% | / | AN | Suppresses harmonics, reduces motor heating, extends motor lifespan, lowers motor noise, minimizes eddy current losses, and protects internal power switching components of the inverter. Supports maximum cable lengths up to 100 meters. | ★★★ |
